PRODUCTS

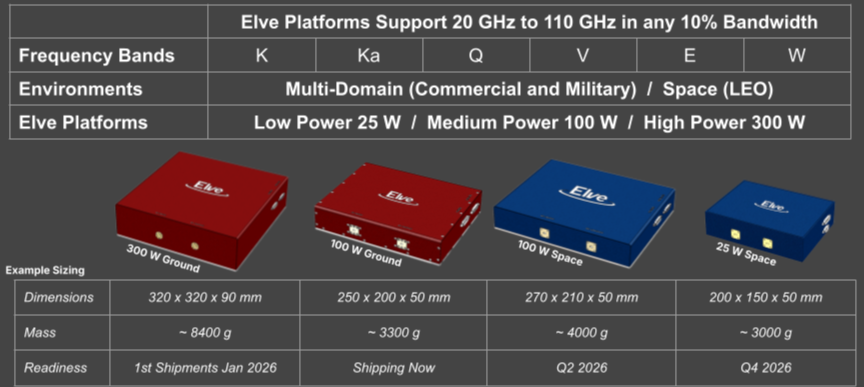

Current Elve power amplifier systems weigh 9 lbs , measure 9 x 6 x 3 inches, and are powered by a 28 V DC input bus.
Elve 30.5M
“Garnet”
Ka-band power amplifier system providing 100 W of saturated output power over 29-31 GHz frequency range with 49% system efficiency. WR-28 input and output waveguides. Air cooled.
Elve 40.5M
“Carmine”
Q-band power amplifier system providing 25 W of linear output power (18 dB NPR) over 37.5-43.5 GHz frequency range with 46% system efficiency. WR-22 input and output waveguides. Conduction cooled.
Elve 49.5M
“Amaranth”
V-band power amplifier system providing 100 W of saturated output power over 47-52 GHz frequency range with 40% system efficiency. WR-19 input and output waveguides. Air cooled.
Elve 73.5M
“Carnelian”
E-band power amplifier system providing 25 W of linear output power (18 dB NPR) at 71-76 GHz frequency range with 35% system efficiency. WR-12 input and output waveguides. Conduction cooled.
Elve 83.5M
“Vermilion”
E-band power amplifier system providing 100 W of saturated output power at 81-86 GHz frequency range with 32% system efficiency. WR-10 input and output waveguides. Air cooled.
Elve 93.5M
“Crimson”
W-band power amplifier system providing 100 W of saturated output power at 92-95 GHz frequency range with 31% system efficiency. WR-10 input and output waveguides. Air cooled.
